Simplecom SA207 mSATA M.2 (NGFF) to SATA 2 In 1 Combo Adapter
AUD$15.81
Tax included
Security policy
We take the security of your transaction seriously.
Delivery policy
Delivered on-time and in perfect condition.
Return policy
Risk free ordering with Bonntech Business Solutions.

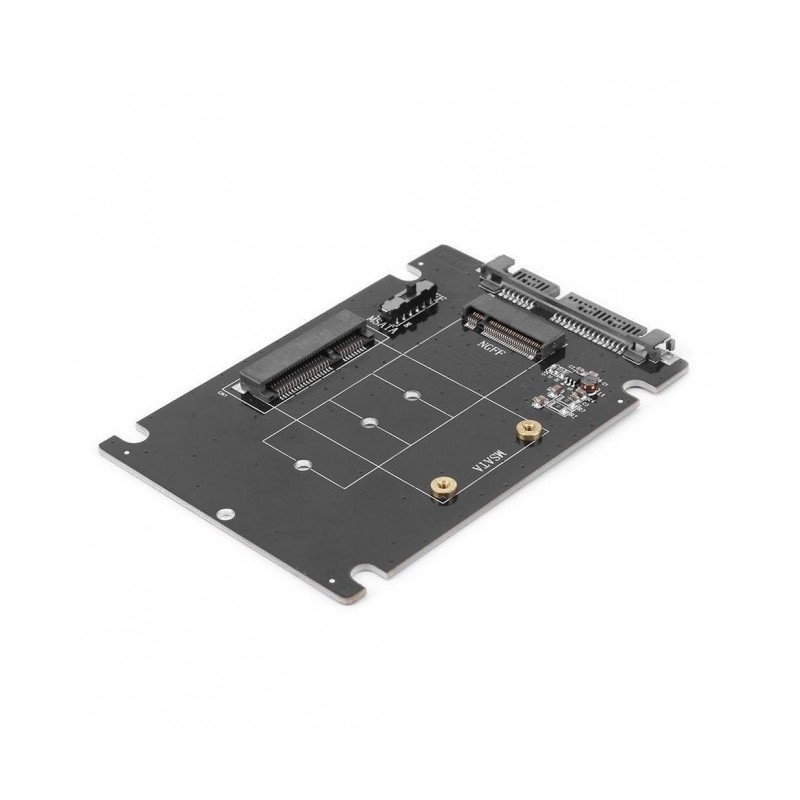

Simplecom SA207 mSATA + M.2 (NGFF) to SATA 2 In 1 Combo Adapter
SA207 is a 2 in 1 Combo Adapter for both M.2 and mSATA SSD to SATA interface. With this adapter, you can easily access M.2 or mSATA SSDs via standard SATA port on PC, also you can install this adapter into an external SATA enclosure. It’s an ideal solution for data backup and migration.
Features
mSATA + M.2 SSD 2 in 1 Combo Adapter
Convert a mSATA or M.2 SSD to SATA 3 interface
On board mSATA and M.2 Switch
Plug and play, no drivers required
Circuit board Size: 97x65x5mm
Support following form factor M.2(NGFF) SSD:
Type 2230-D2-B-M: 30mm(L) x 22mm(W)
Type 2242-D2-B-M: 42mm(L) x 22mm(W)
Type 2260-D2-B-M: 60mm(L) x 22mm(W)
Type 2280-D2-B-M: 80mm(L) x 22mm(W)
Support following form factor mSATA SSD:
Full size mSATA : 50.95mm(L) x 30mm(W)
Package Contents
1x mSATA + M.2 SSD to SATA 2 in 1 Combo Adapter
1x Screw driver
Screw with Washer
Important Note:
*NOT Designed for NVMe PCIe M.2 SSD, will not fit M Key Only SSD Module. Compatible with SATA protocol based mSATA and M.2 (B Key Only or B+M key) SSD only.
SA207 is a 2 in 1 Combo Adapter for both M.2 and mSATA SSD to SATA interface. With this adapter, you can easily access M.2 or mSATA SSDs via standard SATA port on PC, also you can install this adapter into an external SATA enclosure. It’s an ideal solution for data backup and migration.
Features
mSATA + M.2 SSD 2 in 1 Combo Adapter
Convert a mSATA or M.2 SSD to SATA 3 interface
On board mSATA and M.2 Switch
Plug and play, no drivers required
Circuit board Size: 97x65x5mm
Support following form factor M.2(NGFF) SSD:
Type 2230-D2-B-M: 30mm(L) x 22mm(W)
Type 2242-D2-B-M: 42mm(L) x 22mm(W)
Type 2260-D2-B-M: 60mm(L) x 22mm(W)
Type 2280-D2-B-M: 80mm(L) x 22mm(W)
Support following form factor mSATA SSD:
Full size mSATA : 50.95mm(L) x 30mm(W)
Package Contents
1x mSATA + M.2 SSD to SATA 2 in 1 Combo Adapter
1x Screw driver
Screw with Washer
Important Note:
*NOT Designed for NVMe PCIe M.2 SSD, will not fit M Key Only SSD Module. Compatible with SATA protocol based mSATA and M.2 (B Key Only or B+M key) SSD only.
