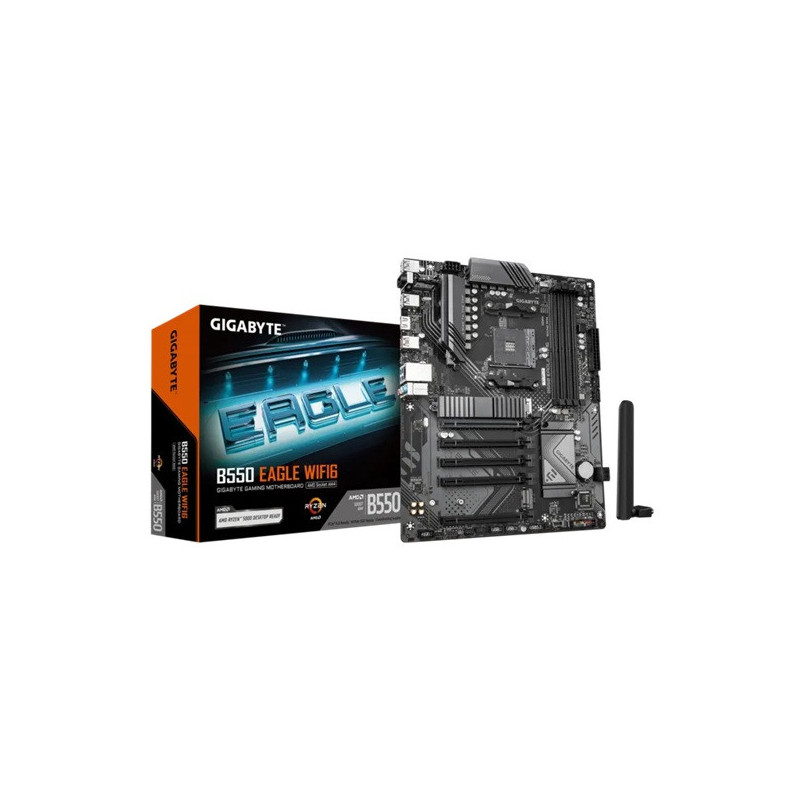

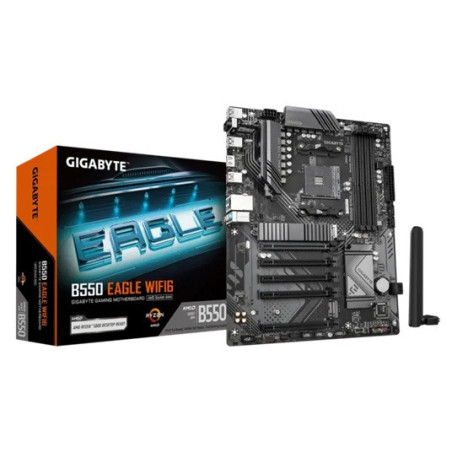

B550 EAGLE WIFI6 AMD ATX motherboard with AM4 support, Ryzen 3000–5000 CPUs, DDR4 up to 128GB, PCIe 4.0, dual M.2, Wi-Fi 6,

B550 EAGLE WIFI6 AMD ATX motherboard with AM4 support, Ryzen 3000–5000 CPUs, DDR4 up to 128GB, PCIe 4.0, dual M.2, Wi-Fi 6, Bluetooth 5.3, HDMI 2.1



High-performance ATX motherboard powered by the AMD B550 chipset, designed for AMD Ryzen™ processors and modern connectivity.



Key Features:



AMD B550, ATX

•

Socket / CPU Support: AM4


•Ryzen 3000, 3000G, 4000G, 5000, 5000G
•

Chipset: AMD B550

•

Memory:
•

4× DDR4 DIMM, up to 128 GB
•

Dual-channel, 2133–3200 MT/s
•

XMP support, ECC & Non-ECC (unbuffered)



•Integrated Graphics:
•

AMD Radeon Graphics (CPU-dependent)
•

1× HDMI 2.1, up to 4K@60Hz


•Max shared memory: 16 GB



•Expansion Slots:


•1× PCIe x16


•PCIe 4.0 (Ryzen 3000/5000)


•PCIe 3.0 (G-Series)


•4× PCIe 3.0 x1

•

Storage:
•

2× M.2 (PCIe 4.0/3.0, CPU-dependent)
•

4× SATA 6Gb/s
•

RAID 0 / 1 / 10 (NVMe & SATA)



•Networking:


•Realtek Gigabit LAN


•Wi-Fi 6, Bluetooth 5.3



•Audio:
•

Realtek HD Audio, up to 7.1-channel


•
USB:


•USB-C (rear & header)


•USB 3.2 Gen 2 / Gen 1


•USB 2.0

•

Internal Headers:
•

24-pin ATX, 8-pin CPU power
•

CPU fan + pump header, 3× system fan


•RGB & ARGB headers

•
TPM header, Clear CMOS jumper



•Back Panel I/O:


•HDMI


•USB-C, USB 3.2, USB 2.0


•RJ-45 LAN
•

Audio jacks


•Q-Flash Plus button



•BIOS:


•AMI UEFI, 128 Mbit flash
•

Q-Flash & Q-Flash Plus



•OS Support: Windows 10 / 11 (64-bit)
•

Form Factor: ATX – 30.5 × 24.4 cm
